Select a reliable rice husk pellet machine that operates continuously, generating wealth for you 24/7. This will be the most dependable and efficient pellet machine you’ll ever encounter.
The rice husk pellet machine processes rice husks into biomass rice husk pellet fuel. While it falls under the category of biomass pellet machines, it differs from wood chip pellet machines due to its higher mold compression ratio. To enhance durability and reduce production costs, the machine requires a more wear-resistant mold for extended service life.
A complete set of rice husk pellet machine equipment includes the pellet machine itself, a control cabinet, a cyclone dust collector, an automatic lubrication system, and a feeding belt conveyor. For those with a sufficient budget, an underground automatic feeder can also be added to the configuration.
Choosing the right rice husk pellet machine primarily depends on your output requirements. A small rice husk pellet machine, with a capacity of less than 1 ton per hour, is ideal for farms and small factories. For such applications, we recommend our heavy-duty flat die pellet machine.
Some customers have shared concerns about issues with other flat die pellet machines they’ve purchased. However, you can trust that our rice husk flat die pellet machine delivers continuous and stable performance, comparable to a ring die pellet machine. This is because both our flat die and ring die pellet machines are equipped with the same heavy-duty hardened gear reducer, ensuring exceptionally reliable operation.
Small rice husk pellet machine typically uses a flat die design, with power ranging from 7.5 kW to 75 kW and an output capacity of 100 to 1000 kilograms per hour. During operation, the raw material is compressed vertically from top to bottom, then cut and ejected by the cutter. Rice husks, being a crop byproduct, have a hard fiber structure and contain silicon. As a result, compared to sawdust and other crop residues, the mold of a rice husk pellet machine tends to have a shorter service life.

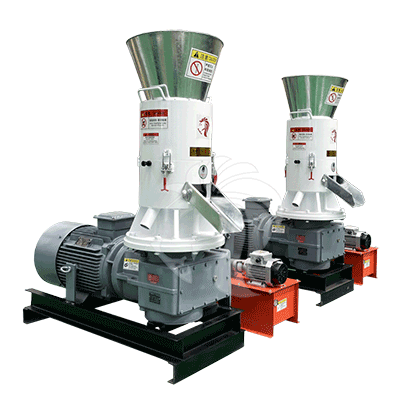

Small flat die rice husk pellet machine
| MODEL | MOTOR | CAPACITY | PELLET DIAMETER |
| KXF200 | 7.5KW | 80-150KG/H | 6-8MM |
| KXFD260 | 15KW | 100-200KG/H | 6-8MM |
| KXFD300 | 22KW | 200-300KG/H | 6-8MM |
| KXFD350 | 30KW | 300-400KG/H | 6-8MM |
| KXFD400 | 37KW | 400-600KG/H | 6-8MM |
| KXFD450 | 45KW | 500-700KG/H | 6-8MM |
| KXFD550A | 55KW | 600-800KG/H | 6-8MM |
| KXFD550B | 75KW | 800-1100KG/H | 6-8MM |
Small flat die rice husk pellet machine

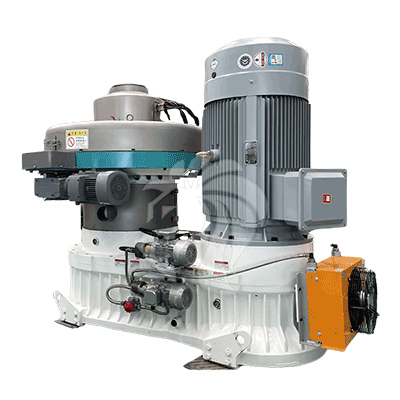

The vertical ring die rice husk pellet machine is a high-capacity model, equipped with a main motor ranging from 90 kW to 250 kW and offering a production capacity of 1 to 4 tons per hour. There are five models available, with the most commonly used being those with main motors of 132 kW and 250 kW. For optimal performance and durability, we recommend using stainless steel molds and welded pressure wheel skins, as they significantly extend the machine’s service life.
| MODEL | MOTOR | CAPACITY | PELLET DIAMETER |
| KXVRD-560A | 90KW | 1000-1200KG/H | 4-12MM |
| KXVRD560B | 110KW | 1200-1500KG/H | 4-12MM |
| KXVRD-560C | 132KW | 1500-2000KG/H | 4-12MM |
| KXVRD-700 | 160KW | 2000-2500KG/H | 4-12MM |
| KXVRD-850 | 250KW | 3000-4000KG/H | 4-12MM |
The primary advantage of producing pellets from rice husks is the low processing cost. Unlike other raw materials, rice husks typically meet the standard requirements for pellet production, with a moisture content of around 15% and a size of less than 10 mm. As a result, no additional drying or crushing is necessary.
This means that only a rice husk pellet mill is needed, significantly reducing the investment cost for a rice husk pellet production line. Additionally, the production setup requires minimal space while delivering high output.
The only drawback of using rice husks as a raw material is the relatively short lifespan of the mold, necessitating regular replacements. However, since no pre-processing is required, the overall operational cost remains lower.

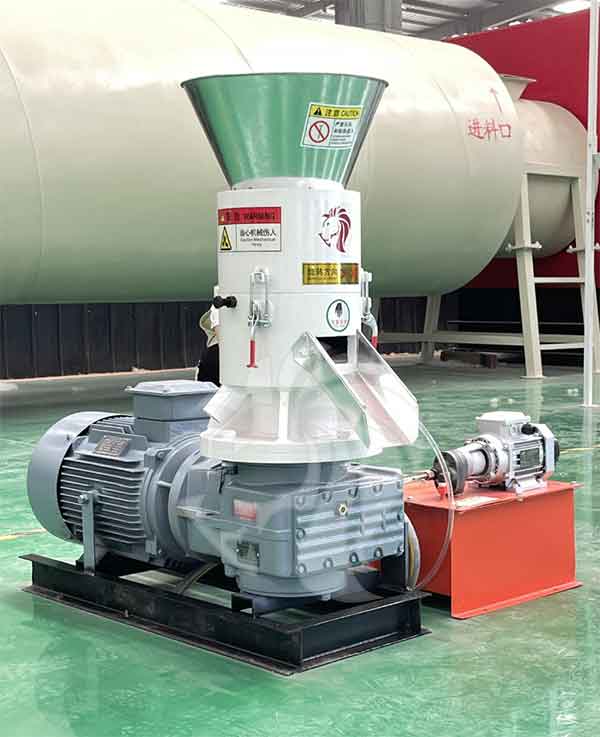

22KW flat die pellet machine

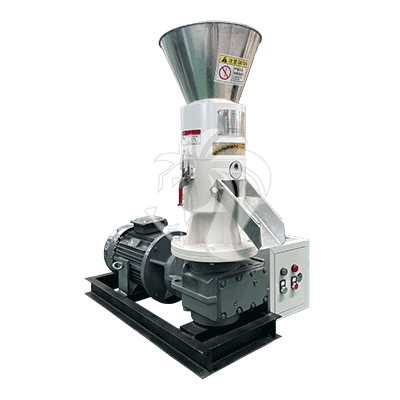

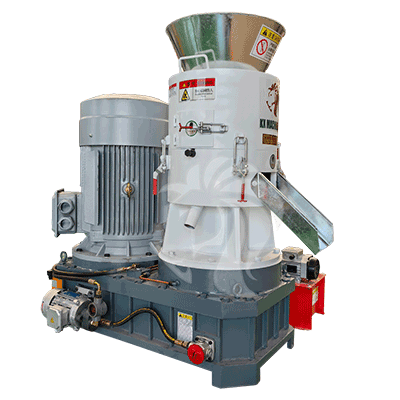

55KW flat die pellet machine

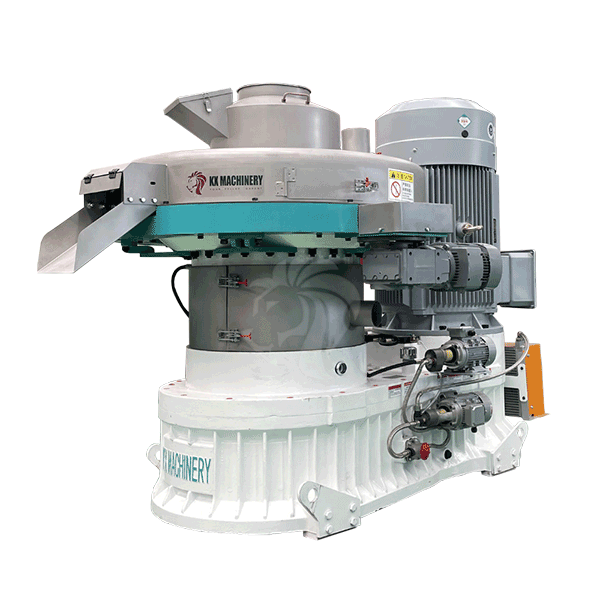

132KW ring die pellet machine
We often encounter customers seeking a pellet machine with low output and a limited budget but hesitant to choose a flat die pellet machine. Why? Many have heard of or personally experienced poor performance with flat die machines.
However, we’re confident that using our flat die pellet machine will change your perspective. Despite being a smaller machine, it incorporates the same heavy-duty gearbox as our larger models. Additionally, the main frame, mold design, and pressure wheel assembly are all built with heavy-duty engineering.
In fact, for the same model, our flat die pellet machine weighs 3 to 5 times more than lighter machines on the market, reflecting its robust build and superior quality. You can rely on its performance and durability. Simply let us know your output requirements, and we’ll recommend the ideal machine for you.
The cost of a rice husk pellet machine varies based on its output and model. A machine designed for home use starts at $2,000, while commercial models range from $6,000 to $40,000 for the largest capacities. For a more precise quote, feel free to contact us.
Based on our experience, the typical supply range for pellets is within a 100-kilometer radius. To find rice husk pellet buyers, consider reaching out to local factories that use boilers. Offer them a free trial of your pellets, and if they are satisfied with the results, you can discuss potential collaboration.

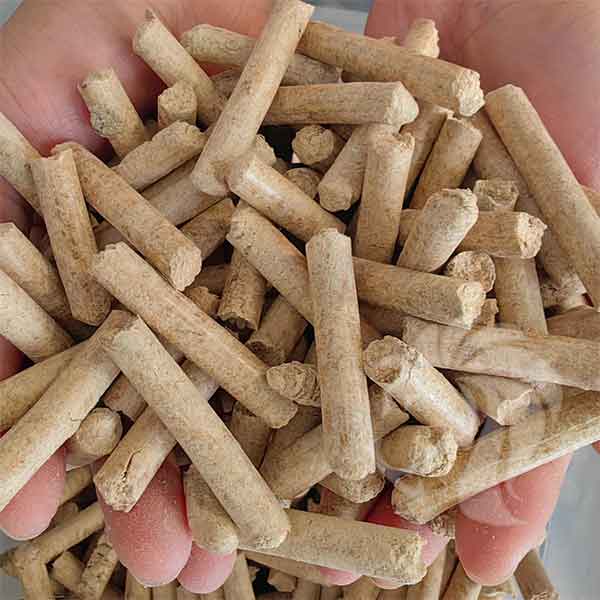

No, with our pellet machine, rice husk pellets can be pressed directly without the need for a binder, and they achieve excellent density and high rice husk pellet calorific value.
100kg/h pellet machine
500kg/h pellet machine
1000kh/h Pellet machine
