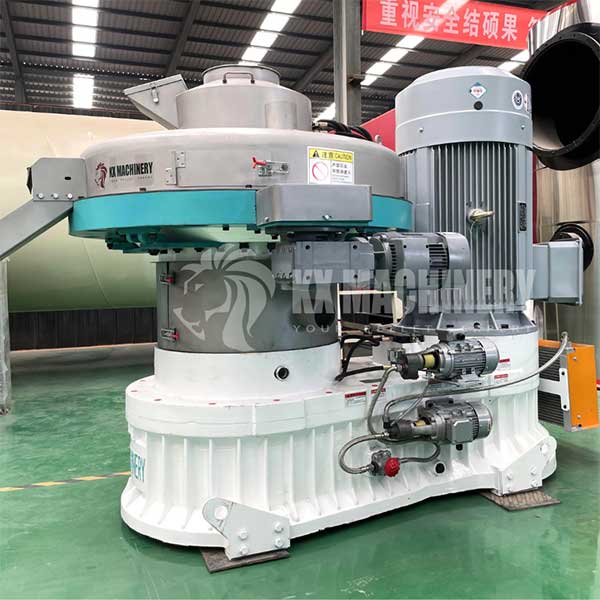

Industrial wood pellet machines generally refer to ring die wood pellet machines with a power of more than 90 kilowatts and an output of more than 1 ton/hour. They have the characteristics of high output, stable operation, and continuous operation.
The power of industrial pellet machines starts at 90 kW and can reach up to 280 kW maximum, but the most commonly used models are 132 kW and 250 kW. The 132 kW wood pellet machine has the highest market share, so both the machine and accessories have the highest cost performance. The 250 kW industrial wood pellet machine is more suitable for large-scale production lines with an output of more than 5 tons/h because of its high output, small footprint, and labor savings.
The industrial wood pellet mill consists of several key components, including:
The above are the most important components of the wood pellet machine. Automatic lubrication can ensure the stable operation, the air cooling system can ensure the continuous operation, and the automatic control system can avoid machine blockage due to excessive feeding raw material.
In large-scale industrial production, the requirements for industrial pellet machines are completely different for small farms and home use pellet mill. Because the running time and working environments are completely different. In industrial production, a high-quality wood pellet machine needs to have the following characteristics:
| MODEL | KX-VRD560A | KX-VRD560B | KX-VRD560C | KX-VRD700 | KX-VRD850 | POWER | 90KW | 110KW | 132KW | 160KW | 250KW | CAPACITY | 1000-1200KG/H | 1200-1500KG/H | 1500-2000KG/H | 2000-2500KG/H | 3000-4000KG/H | APPLICATION | Bio-fuel,feed, and fertilizer pellet | Bio-fuel,feed, and fertilizer pellet | Bio-fuel,feed, and fertilizer pellet | Bio-fuel,feed, and fertilizer pellet | Bio-fuel,feed, and fertilizer pellet |

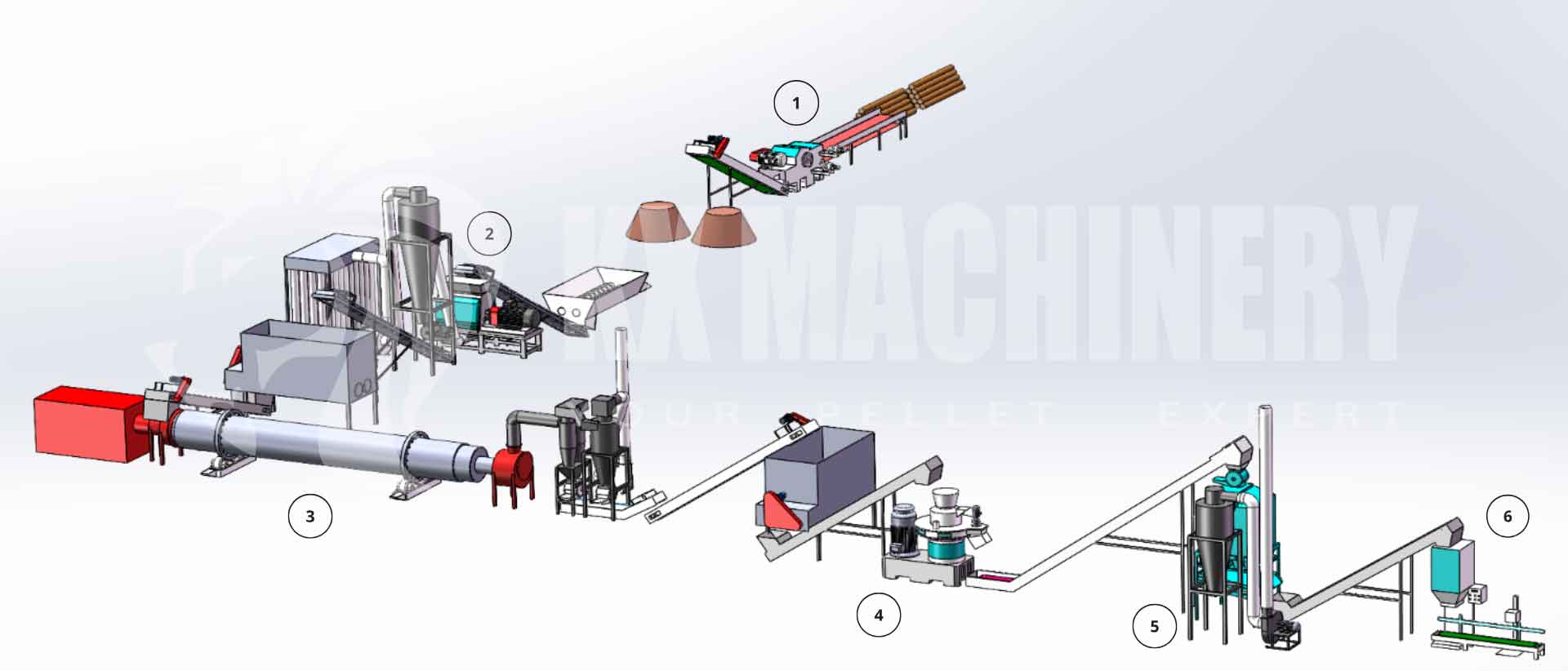

Wood Crusher: ② Wood hammer mill, it suitable for wood blocks, wood chips, palm leaves, agriculture waste, etc. final raw material can reach 3-10mm size through customized inner screens. The wood crusher is equipped with heavy hammers, cyclone, fan and dust collector.
Drum Drying Machine: ③ rotary dryer, it can dry very high-moisture materials, making sure the output moisture content is about 15-20%. It is equipped with adjustable temperature and airflow control devices to adapt to different types of biomass and ensure consistent drying performance.

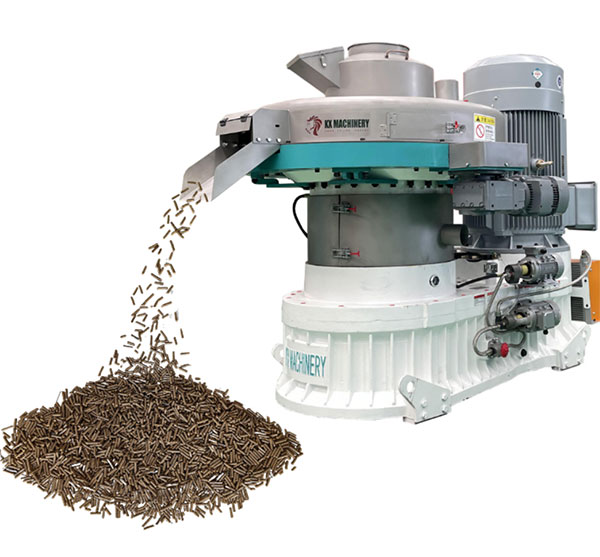

Industrial Wood Pellet Machine: ④ it can make various biomass materials into pellets. Such as wood chips, sawdust, agricultural residues, and even waste plastics. These pellets are usually used as fuel for biomass boilers, animal feed, or fertilizer, depending on the material and production requirements.
Cooling and Packing System: ⑤The pellet cooling machine is equipped with a vibrating screen to remove pellet dust, and an ⑥ automatic wood pellet packaging machine can pack pellets in small or big bags.
It depends on several factors, including the scale of production, the kinds of raw materials, and the specific equipment， for a simple line, about 90,000USD-130,000USD. You can contact us to get a detailed proposal.
No need any binder. We can customize the pellet machine for high-quality and high-density pellets.
One year, not including the wear parts. We provide detailed installation and test run support online service also.
Partner with us for trusted, efficient, and innovative fuel pellet production lines. Your energy needs, powered by our expertise—reach out today!
